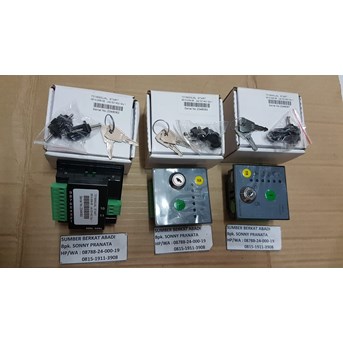

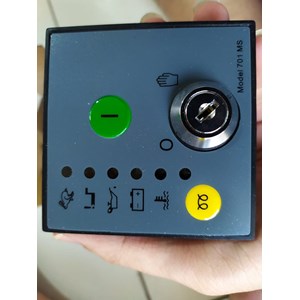

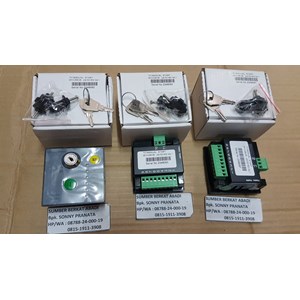

Detail MANUAL START 701MS KEY START ENGINE 0810-006-06 CONTROL 701 MS 701-MS
MANUAL START 701MS KEY START ENGINE 0810-006-06 CONTROLLER 701 MS 701-MS ENGINE START 701MS DSE 701 DSE-701 DSE701
Auxiliary shutdown input
Engine monitoring and protection
LED indication
Engine pre-heat
Front panel mounting
Multiple engine parameters are monitored simultaneously
DC PROVIDE
CONTINUOUS VOLTAGE RATING = 8 V to 35 V continuous
CRANKING DROPOUTS = Able to survive 0 V for 50 mS, providing provide was at least 10 V before dropout and provide recovers to 5 V. This is achieved without the need for internal batteries.
OUTPUTS
START = Solid state 1.2 A negative grounding terminal
RUN = Solid state 1.2 A negative grounding terminal
PRE-HEAT = Solid state 1.2 A negative grounding terminal
GENERATOR
VOLTAGE RANGE = 15 V - 333 V AC (L-N)
FREQUENCY RANGE = 3.5 Hz to 75 Hz
Dimension = 8,5 x 7 x 4 ,5 cm
Generator
